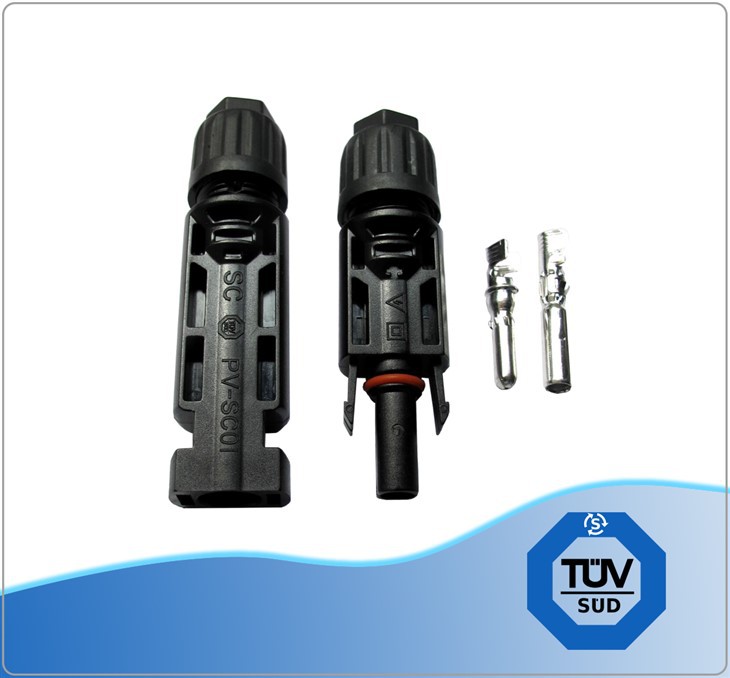

Product
Parameters
| Certification | TUV |
| Certificate NO. | R50183265 |
| Standard | EN50521:2008 |
| RATED VOLTAGE | 1000VDC |
| Test Voltage | 6000V(50Hz 1min) |
| RATED Current | 30A |
| Protection Class | ClASSⅡ |
| Protection Degree | IP67 |
| Flame Class | UL94-V0 |
| Overvoltage Category | Ⅲ |
| Pollution Degree | 2 |
| Temperature Range | -40C~+85℃ |
| Upper Limiting Temperature | 105℃ |
| Contact resistance | ≤0.5mΩ |
| Insulation resistance | >500MΩ |
| Insert force | ≤50N |
| Pullout force | ≤50N |
| Connecting Cable | 1x1.25/4/6mm² |
| Waterproofing structure | O-ring Seal |
Product drawing
