Parameters

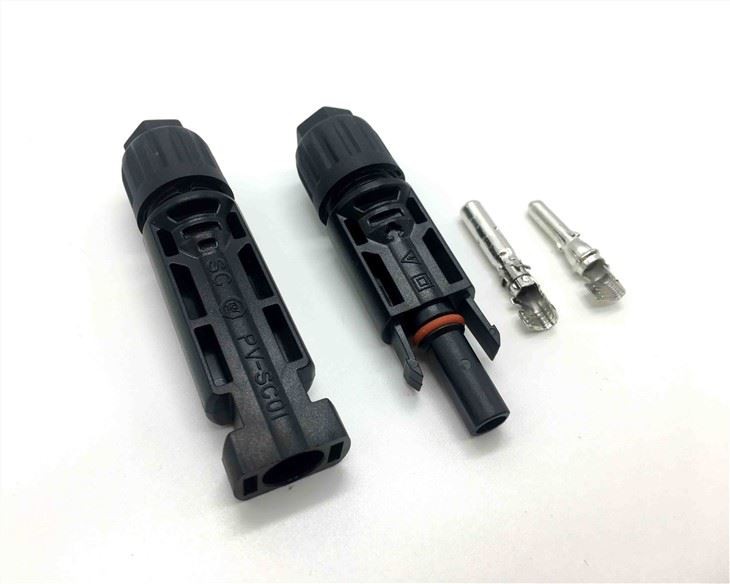

Products Description
|
Certification |
TUV |
|
Certificate No. |
R50183265 |
|
Standard |
EN50521:2008 |
|
Rated Voltage |
1000VDC |
|
Test Voltage |
6000V(50Hz 1min) |
|
Rated Current |
30A |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP65 |
|
Flame Class |
UL94-V0 |
|
Overvoltage Category |
III |
|
Pollution Degree |
2 |
|
Temperature Range |
-40℃~+85℃ |
|
Upper Limiting Temperature |
105℃ |
|
Contact resistance |
≤0.5mΩ |
|
Insulation resistance |
>500MΩ |
|
Insert force |
≤50N |
|
Pullout force |
≥50N |
|
Connecting Cable |
1×4mm2 |
|
Waterproofing structure |
O-ring Seal |
Suitable to solar cable, 2.5mm, 4mm and 6mm.
Solar Connector Advantage is quickly and reliable connection, UV resistance and IP68 waterproof.
TUV, CE and ISO certificate approval.
High strength PPO material, heat-resistant, high temperature-resistant, wear-resistant, non-flammable.
|
|
|
