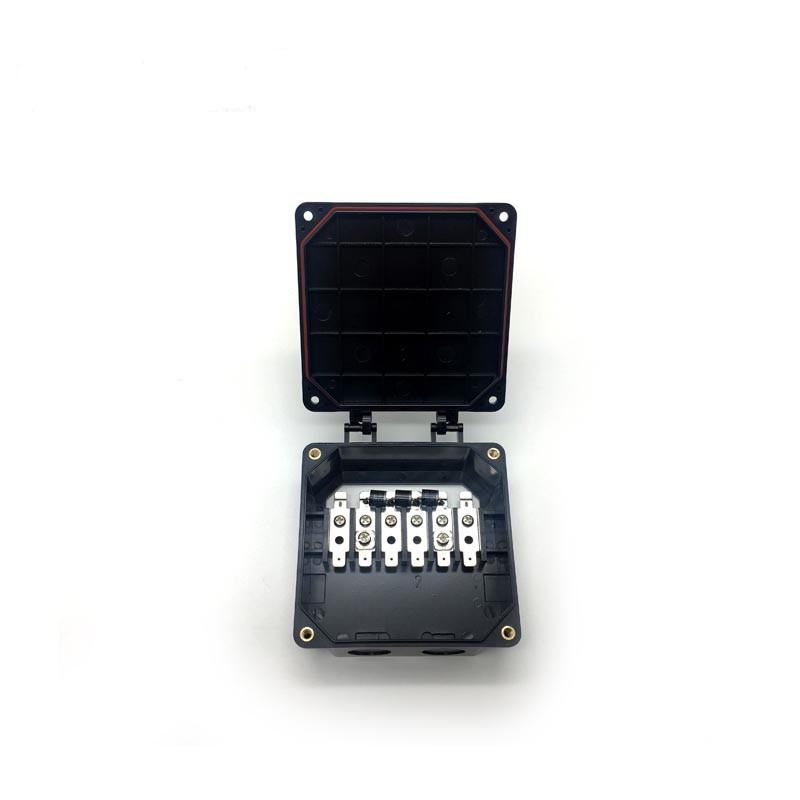

Product Parameter
|
Rated Voltage |
1000VDC |
|
Rated Current |
8.5-12A |
|
Protection Class |
Class Ⅱ |
|
Protection Degree |
IP65 |
|
Flame Class |
UL94-V0 |
|
Temperature Range |
-40℃~+85℃ |
|
Connecting Cable |
1×2.5-6mm2 or 2×1.5-6m㎡ |
|
Waterproofing structure |
O-ring Seal |
|
Width Of Copper Ribbon |
Up to 6.4mm |
|
Connection Method |
Soldering |
|
Insulation Material |
PPO |
|
Contact Material |
Copper alloy, tin plated |
|
Overall Dimension |
111(100)×102×38 mm
|
|
Bonding mode |
silica gel |
|
The bonding area |
3000m㎡ |
|
Connector |
No |
|
|
|
|
