Product Description

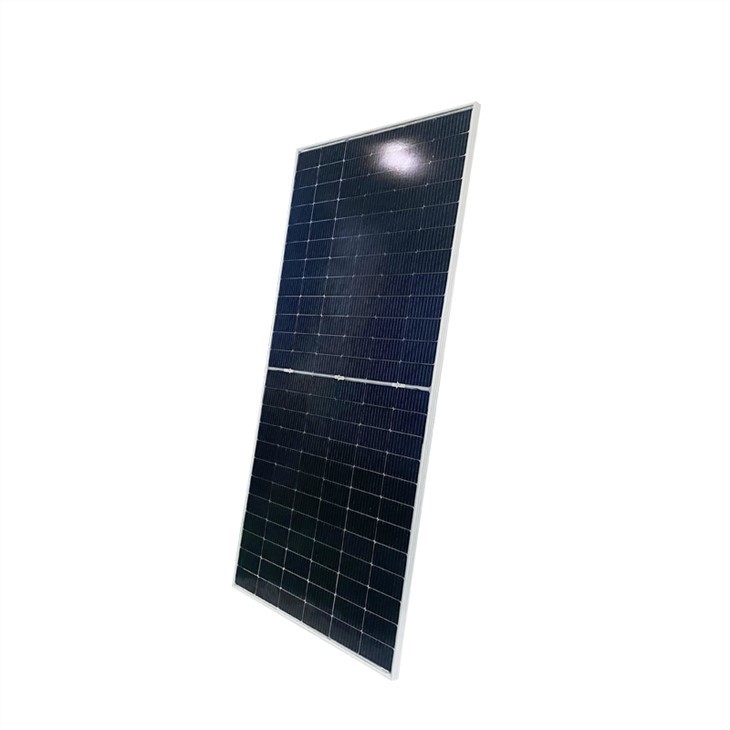

- High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability.
- Rigorous quality control to meet the highest international standards.
- High transmittance, low iron tempered glass with enhanced stiffness and impact resistance.
- Unique frame design with high mechanical strength for easy installation.
- Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
- Outstanding electrical performance under high temperature and low irradiance conditions.
|
|
|
Specification
| Electrical Characteristics(stc*) | |
|
Model No.(SFM)
|
580W
|
|
Maximum Power at STC(Pmax)
|
580W
|
|
Maximum Power Voltage(Vmp)
|
44.8
|
|
Maximum Power Current(Imp)
|
12.96
|
|
Open Circuit Voltage(Voc)
|
53.6
|
|
Short Circuit Current(Isc)
|
13.7
|
|
Maximum System Voltage(V)
|
1500V DC(IEC)
|
|
Maximum Series Fuse Rating(A)
|
25A
|
|
Power Tolerance(%)
|
0～+3%
|
|
NOCT
|
45±2℃
|
|
Pmax Temperature Coefficient
|
-0.46%/℃
|
|
Voc Temperature Coefficient
|
-0.346%/℃
|
|
Isc Temperature Coefficient
|
0.065%/℃
|
|
Operating Temperature
|
-40~+85℃
|
|
|
|
|
|
